An emergency shutdown system spends essentially all of its life doing nothing, and that is precisely the problem — a safety function that is never exercised can degrade silently for years and only reveal its failure at the single moment it was installed to handle.

What emergency isolation is for

Emergency isolation systems stop the flow of flammable material into an area and remove energy sources, limiting the size of a release and removing what feeds a developing incident. The distinction from process control is important: a control system optimizes normal operation, while a safety instrumented system exists solely to bring the process to a safe state when defined limits are exceeded, and combining both functions in shared equipment means a fault in the control system can disable the protective function simultaneously.

Independence from the control system

Safety instrumented functions are generally designed to be independent of the basic process control system, so that a failure in the control layer — a failed sensor, a controller fault, a software issue — does not simultaneously remove the protective layer that exists to handle exactly that kind of failure. Where a shared sensor or shared final element is used for both purposes, the independence that protection depends on is compromised in a way that is not visible during normal operation.

Reliability of the safety function itself

The reliability required of a safety function depends on how much risk reduction it is being relied upon to provide, and the design principles for safety-related control systems set out in ISO 13849 address how that required performance is specified and achieved. A safety function assumed in a risk assessment to provide substantial risk reduction, but implemented with components and architecture that cannot actually deliver that reliability, leaves a gap between the assessed risk and the real one.

Proof testing

Because emergency systems are dormant, faults accumulate undetected between demands, and periodic proof testing — deliberately exercising the full function from sensor through logic to final element — is what reveals these dormant faults. Testing only part of the chain, such as confirming a button operates without verifying the valve actually closes, leaves the untested portion’s dormant faults exactly as hidden as before the test.

Accessibility and defeat

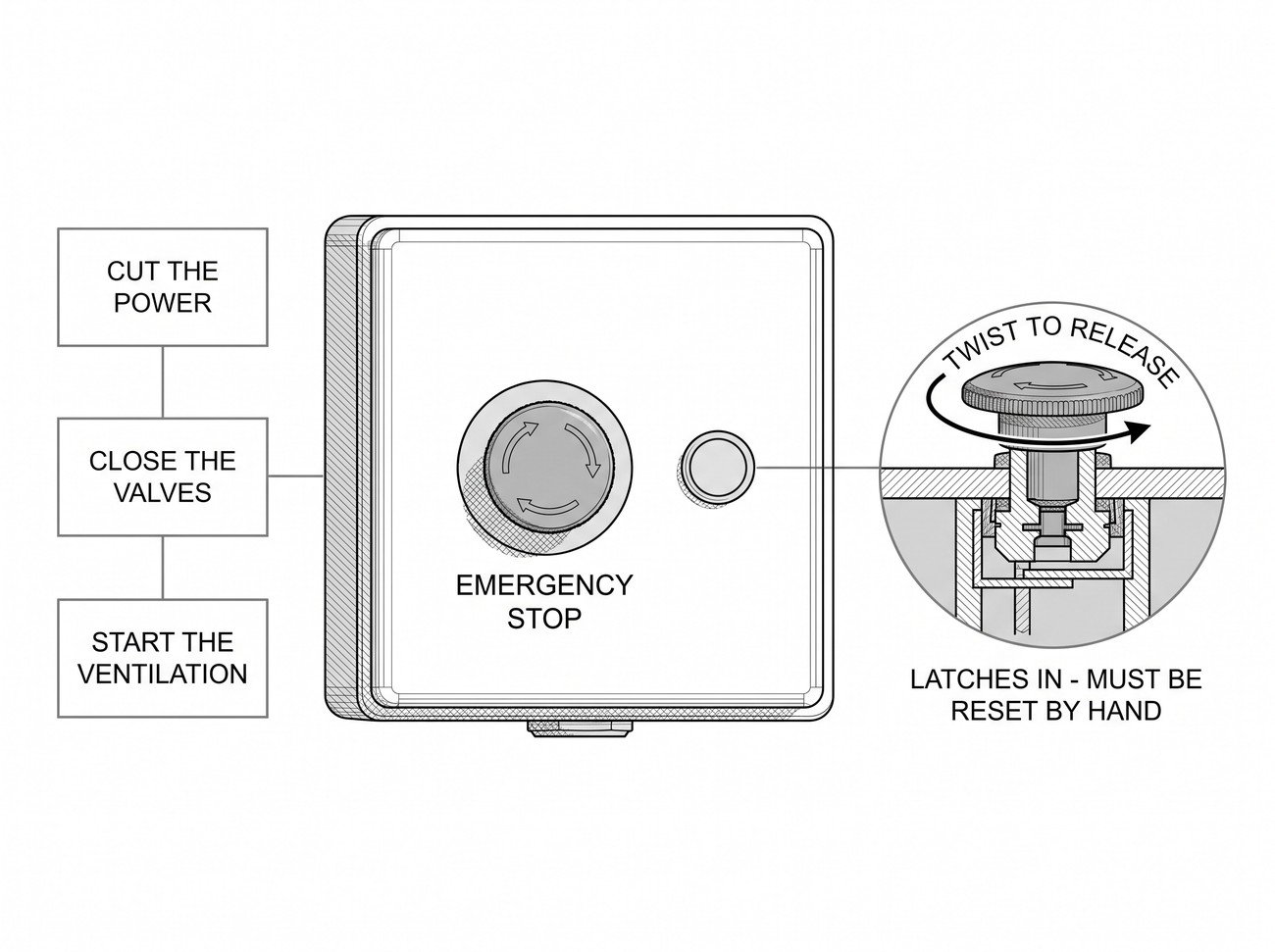

Emergency controls need to be reachable from where an operator would actually be during a developing incident, along a route that stays usable as the situation deteriorates, and controls positioned so they require approaching the hazard to activate provide much less than their design intent. Bypasses and overrides fitted for maintenance need documented control and removal, since a bypass left in place after maintenance disables the protective function while every indication suggests it remains available.

For the equipment this protection interfaces with, see selecting ATEX-rated electrical equipment.

Related standards

The standards below set the test methods and performance levels behind the equipment referenced in this note.

• ISO 13849 — Safety-related parts of control systems
• ISO 12100 — Safety of machinery
